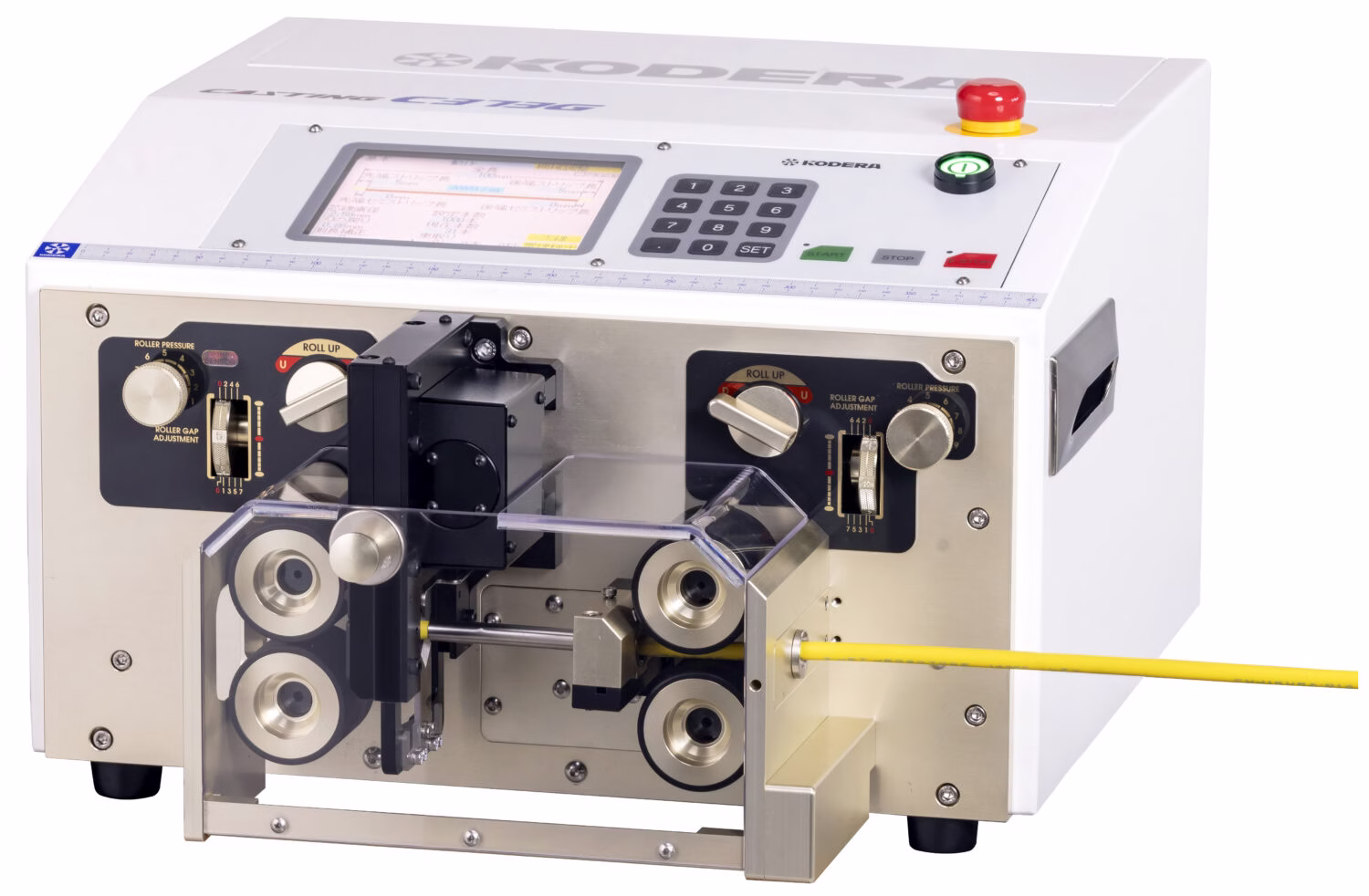

C373G

Medium-thick wire processing machine

AWG#2 (30sq) ~AWG#28 (0.08sq)
Maximum outer diameter ⌀11mm

• The wide-range, high-power model has been redesigned to improve reliability.
• The system is equipped with a multilingual display function and has ample space to accommodate the addition of further languages. Currently, it supports 13 languages (Japanese, English, Simplified Chinese, Traditional Chinese, Korean, Turkish, Polish, Indonesian, Thai, Vietnamese (2 languages), and Spanish (2 languages)).
• The thick wire mode reduces processing defects caused by remaining coating residue. Furthermore, the position of the wire is changed when processing the rear end, achieving smooth shift-up operation.
• Reduces noise from the cooling fan for improved quietness.
• Input power is compatible worldwide (AC100~240V)
• In addition to cutting, stripping, semi-stripping, step stripping, and divided stripping, various other processes such as slitting and intermediate stripping can be performed by equipping options.
• A single unit can process a wide range of wires from AWG#2 (30 sq) to AWG#28 (0.08 sq).
• It can accommodate round cables up to 11mm in diameter, making it suitable for a wide range of applications.
• Flat cable processing is possible with optional equipment.
